- Description
-
Details
Additional Information:
This NETGEAR ProSafe 24 Port Gigabit Rackmount Switch is in great working condition.
The unit has been fully tested and is completely functional.
Included in the Box:
Main unit, power cord.
Packaging:
The item may be packaged in an Original or Brown box.

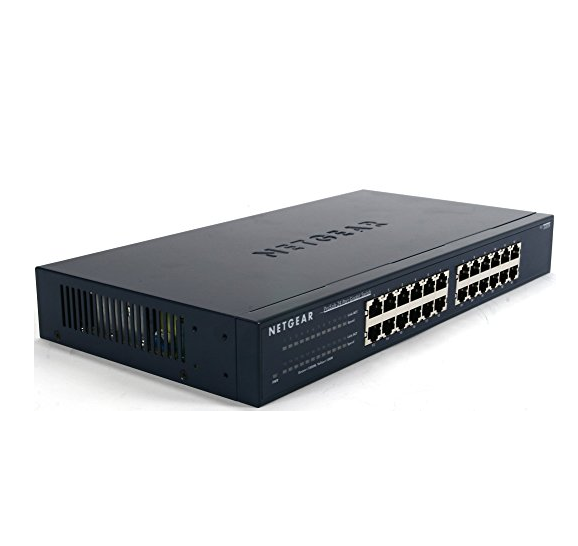

NETGEAR JGS524NA ProSafe 24 Port Gigabit Rackmount Switch Description:
-
NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-port switch can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.
NETGEAR JGS524NA ProSafe 24 Port Gigabit Rackmount Switch Specifications:
Expansion Slots Not Applicable MTBF 87600 Hour(s) Management Not Applicable Interfaces/Ports 24 x 10/100/1000Base-T LAN Memory 256KB Packet Buffer Manufacturer Netgear Inc Flow Control IEEE 802.3x (Full-duplex) Standard Warranty 2 Year(s) Temperature 0 °C (32 °F) to 40 °C (104 °F) Operating -20 °C (-4 °F) to 70 °C (158 °F) StorageConnectivity Media Category 5 UTP Input Voltage 100 V AC to 240 V AC Slot Details Not Applicable Manufacturer Part Number JGS524NA Interfaces/Ports Details 24 x RJ-45 10/100/1000Base-T Auto-sensing/Auto MDI/MDI-X LAN Additional Information Latency (1000 to 1000 Mbps): 20 µs max Status Indicators Unit: power Per network port: Link, Activity, Speed Humidity 90% Maximum Non-condensing Relative Humidity Operating 10% to 95% Relative Humidity StorageManufacturer Website Address www.netgear.com System Requirement UTP Category 5 cables or better Network card for each PC or server Form Factor Rack-mountable Supported Layers 2 Switching Modules Not Applicable Dimensions 1.7" Height x 13" Width x 8.2" Depth Frequency 50 Hz or 60 Hz Stackable Not Applicable Data Transfer Rate 10Mbps Ethernet Half/Full-duplex 100Mbps Fast Ethernet Half/Full-duplex1Gbps Gigabit Ethernet Half/Full-duplexCompatibility PC Macintosh Linux Unix operating system Performance 48Gbps Switching Performance 1480000pps Forwarding Rate 1Gbps Port(s)148000pps Forwarding Rate 100Mbps Port(s)14800pps Forwarding Rate 10Mbps Port(s)Shipping Dimensions 4.5" Height x 14.5" Width x 9.75" Depth Product Series JGS500 Certifications & Standards IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3x: Flow Control Electromagnetic Compliance: CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1 EN 55024 C-Tick Safety Agency Approvals: UL listed (UL 1950)/cUL IEC950/EN60950 Address Table 8K MAC Addresses Power Consumption 40 W Maximum Power Supply AC Weight 5.3 lb Product Name JGS524 24-Port Gigabit Ethernet Switch Shipping Weight 7 lb Product Type Ethernet Switch -
