- Description
-
Details
Additional Information:
This SPI Fan Rohs Power Supply is in great working condition.
The unit has been fully tested and is completely functional.
Included in the Box:
SPI Fan Rohs Power Supply
Packaging:
The item is securely packaged in Original box.

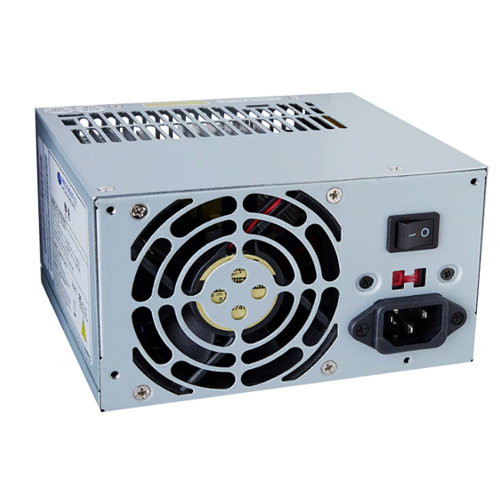

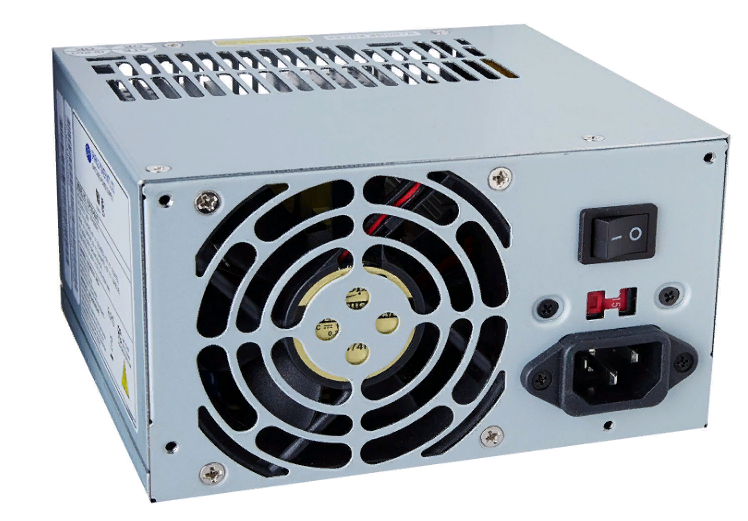

SPI FSP300-60ATV 300W ATX 20-PIN 8CM BB Fan Rohs Power Supply Specifications:
Type ATX
Maximum Power 300W
Fans 1
PFC No
Main Connector 20Pin
+12V Rails Single
PCI-Express Connector No
SLI No
Modular No
Power Good Signal 100-500ms
Hold-up Time 16.6ms min.@115V/60Hz; 20ms min.@230V/50Hz
Efficiency > = 65%
Over Voltage Protection Yes
Overload Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +3.3V@28A; +5V@30A; -5V@0.3A; +12V@15A; -12V@0.8A; +5VSB@2A
MTBF 100,000 hours on maximum load at +25° C
Approvals UL 1950, CSA C22.2 Level 3, TUV EN60950, Nemko (CB Report)
Connectors 1 x Main connector (20 pin)
- 1 x 12V (P4)
- 6 x peripheral
- 2 x Floppy
- 1 x AUX Power
Features
- Remote On/Off function, Noise Killer (Thermal fan speed control function)
- High efficiency and reliability
- Remote On/Off function
- Low noise and ripple
- Complies with FCC part 15 subpart J class B and CISPR 22 Class B
- Output over voltage, short circuit, and over current protection - Reviews
-
