- Description
-
Details
Additional Information:
This DJI Zenmuse X5S 20.8MP Camera is in great condition. (New)
Included in the Box:
DJI Zenmuse X5S 20.8MP Camera
Packaging:
The item is securely packaged in Original box.

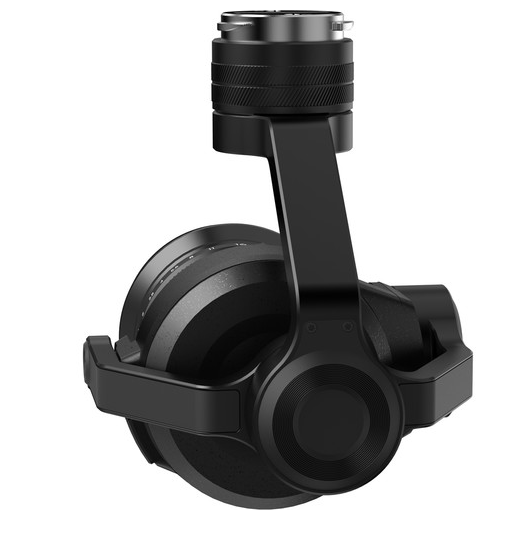

DJI Zenmuse X5S 20.8MP Camera and 3-Axis Gimbal with MFT 15mm f/1.7 ASPH Lens CP.ZM.000496 Description:
Equipped with an uprated Micro 4/3 sensor, the DJI Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. Included here are the gimbal, camera, and lens.
The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video, as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designedto keep pace with the rigors of high-end professional aerial imaging.
DJI Zenmuse X5S 20.8MP Camera and 3-Axis Gimbal with MFT 15mm f/1.7 ASPH Lens CP.ZM.000496 Specifications:
Angular Vibration Range
+/-0.01 deg.
Mount
Detachable
Controllable Range
Tilt: +30 deg. to -90 deg., Pan: +/-320 deg.
Mechanical Range
Tilt: +50 deg. to -140 deg., Pan: +/-330 deg., Roll: +90 deg. to +30 deg.
Maximum Controllable Speed
Tilt: 90 deg./s, Pan: 90 deg./s
Supported Lens
MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood)
Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood)
Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 12mm/2.0 (With Balancing Ring)
Olympus M.Zuiko 17mm/1.8 (With Balancing Ring)
Olympus M.Zuiko 25mm/1.8
Olympus M.Zuiko 45mm/1.8
Olympus M.Zuiko 9-18mm/4.0-5.6Sensor
CMOS, 4/3"
Effective Pixels: 20.8MPFOV
72 deg. (with DJI MFT 15mm/1.7 ASPH)
Photo Resolutions
4:3, 5280x3956
16:9, 5280x2970Video Resolutions
CinemaDNG:
5.2K: 5280x2970 23.976/24/25/29.97p, 12-bit, Up to 4.2Gbps
5.2K: 5280x2160 23.976/24/25/29.97p, 12-bit
4K: 4096x2160, 3840x2160 23.976/24/25/29.97/47.95p, 12-bit, Up to 3.6Gbps
4K: 4096x2160, 3840x2160 50/59.94p, 10-bit
ProRes:
5.2K: 5280x2160 23.976/24/25/29.97p, 10-bit, 422HQ at 1.8Gbps
4K: 3840x2160 23.976/24/25/29.97p, 10-bit, 422HQ at 1.3Gbps
4K: 3840x2160 23.976/24/25/29.97p, 10-bit, 444HQ at 2.1GbpsVideo Resolutions (Cont.)
H.264:
C4K: 4096x2160 23.976/24/25/29.97/47.95/50/59.94p at 100Mbps
4K: 3840x2160 23.976/24/25/29.97/47.95/50/59.94p at 100Mbps
2.7K: 2720x1530 23.976/24/25/29.97p at 80Mbps and 47.95/50/59.94p at 100Mbps
FHD: 1920x1080 23.976/24/25/29.97p at 60Mbps, 47.95/50/59.94p at 80Mbps and 119.88p at 100Mbps
H.265:
C4K: 4096x2160 23.976/24/25/29.97p at 100Mbps
4K: 3840x2160 23.976/24/25/29.97p at 100MbpsVideo Resolutions (Cont.)
H.264:
C4K: 4096x2160 23.976/24/25/29.97/47.95/50/59.94p at 100Mbps
4K: 3840x2160 23.976/24/25/29.97/47.95/50/59.94p at 100Mbps
2.7K: 2720x1530 23.976/24/25/29.97p at 80Mbps and 47.95/50/59.94p at 100Mbps
FHD: 1920x1080 23.976/24/25/29.97p at 60Mbps, 47.95/50/59.94p at 80Mbps and 119.88p at 100Mbps
H.265:
C4K: 4096x2160 23.976/24/25/29.97p at 100Mbps
4K: 3840x2160 23.976/24/25/29.97p at 100MbpsPhoto Formats
DNG, JPEG, DNG+JEPG
Video Formats
RAW, ProRes, MOV, MP4
Operation Modes
Capture, Record, Playback
Still Photography Modes
Single shot, Burst shooting: 3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Timelapse
Exposure Mode
Auto, Manual, Shutter, Aperture
Exposure Compensation
+/-3.0 (1/3 increments)
Metering Mode
Center-weighted metering, Spot metering (area option 12x8)
AE Lock
Supported
Electronic Shutter Speed
8-1/8000s
White Balance
Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K - 10000K)
ISO Range
100 - 6400 (Video)
100 - 25600 (Stills)Video Captions
Supported
Anti-Flicker
Auto, 50Hz, 60Hz
PAL/NTSC
Supported
Operating Temperature
14 to 104 deg. F (-10 to 40 deg. C)
Storage Temperature
14 to 140 deg. C (57 to 284 deg. F)
Dimensions
140 x 98 x 132mm (5.51 x 3.86 x 5.20")
Weight
461g (16.26oz)
